Forcibly Removing a Dead Domain Controller

In my previous post, I shared how a simple chkdsk command completely destroyed a production domain controller with the "Unmountable Boot Volume" blue screen sealed its fate, I was left with a dead server that Active Directory still thought was alive and well.

This is the story of how I performed a complete metadata cleanup to remove all traces of that failed domain controller from Active Directory.

The Problem: Zombie Domain Controller

When a domain controller dies unexpectedly (hardware failure, corruption, or in my case, filesystem disaster), Active Directory doesn't automatically know it's gone. The domain continues to:

• Reference the dead DC in replication topology
• Maintain DNS records pointing to the failed server
• Keep the computer object in the Domain Controllers OU
• Preserve site and service references

These "zombie" references cause several problems:

• Slow authentication as clients try to contact the dead DC
• Replication errors and warnings
• DNS resolution issues
• General Active Directory health problems

Preparation (collect relevant data)

Before starting the cleanup process, I gathered critical information:

1. Verify the DC is truly dead

No point of return here - my server showed "Unmountable Boot Volume" and wouldn't boot.

2. Check FSMO roles

netdom query fsmo

Fortunately, my failed DC (fuzzybear) didn't hold any FSMO roles. If it had, I would need to seize those roles first.

3. Identify other healthy DCs

netdom query /domain:bear.local dc

I had multiple other domain controllers, so the domain was stable.

4. Gather server details

• Server name: fuzzybear.bear.local
• Domain: bear.local
• Site: New York
• IP Address: [noted from DNS records]

Zombie 🧟 Domain Controller Cleanup Process

‼️ Warning : Please ensure before proceeding the domain controller will not come back online, you will be removing the domain controller from active directory by following this information - they should only be followed if a graceful demotion cannot occur.

Here's the step-by-step process I used to completely remove all traces of the dead domain controller:

Step 1: NTDSUTIL Metadata Cleanup

This is the core of the cleanup process. NTDSUTIL removes the domain controller from Active Directory's replication topology:

ntdsutil
metadata cleanup
connections
connect to server bearclaws.bear.local
quit
select operation target
list domains
select domain 0
list sites
select site 0
list servers in site
select server 1
quit
remove selected server
quit
quit

What this does:

• Connects to a healthy DC (bearclaws)
• Selects the target domain and site
• Lists servers in the site and selects the failed one
• Removes the server from AD replication metadata

Step 1A: Remove Computer Object from Domain Controllers OU

Sometimes NTDSUTIL doesn't remove the computer object, so I verified and cleaned it manually:

dsrm "CN=fuzzybear,OU=Domain Controllers,DC=bear,DC=local" -NoPrompt

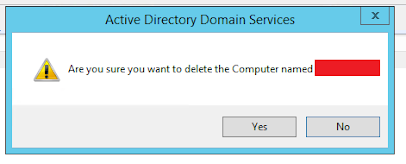

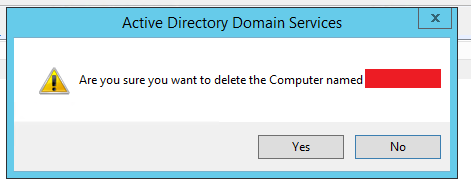

Or through Active Directory Users and Computers GUI:

• Navigate to Domain Controllers OU
• Delete the "BearClaws" computer object



• Select "This DC is permanently offline..."




Step 1B: Verify Sites and Services Cleanup

Check Active Directory Sites and Services to ensure the server object is gone:

• Sites → New York → Servers
• Verify "fuzzybear" is removed
• If still present, delete it manually

Step 2: DNS Records Cleanup

This was the most time-consuming part. DNS records don't get automatically cleaned up by NTDSUTIL, so I had to remove them manually.

PowerShell Method (Recommended):

# Clean up _msdcs zone records
Get-DnsServerResourceRecord -ZoneName "_msdcs.bear.local" | Where-Object {
    $_.RecordData.IPv4Address -eq "10.85.66.266" -or
    $_.RecordData.NameServer -eq "bearclaws.bear.local." -or
    $_.RecordData.DomainName -eq "bearclaws.bear.local."
} | Remove-DnsServerResourceRecord -ZoneName "_msdcs.bear.local" -Force

# Clean up main domain zone
Get-DnsServerResourceRecord -ZoneName "bear.local" | Where-Object {
    $_.RecordData.IPv4Address -eq "10.85.66.266" -or
    $_.RecordData.DomainName -eq "bearclaws.bear.local."
} | Remove-DnsServerResourceRecord -ZoneName "bear.local" -Force

# Clean up reverse lookup zone
Get-DnsServerResourceRecord -ZoneName "1.0.10.in-addr.arpa" | Where-Object {
    $_.RecordData.DomainName -eq "bearclaws.bear.local."
} | Remove-DnsServerResourceRecord -ZoneName "1.0.10.in-addr.arpa" -Force

Step 3: Force Active Directory Replication

After all the cleanup, I forced replication across all domain controllers to ensure the changes propagated:

repadmin /syncall /AdeP

Command breakdown:

• /syncall = Synchronize with all replication partners
• /A = All partitions (domain, configuration, schema)
• /e = Enterprise-wide (entire forest)
• /P = Push mode (initiate replication)

Step 4: Verification and Health Checks

Finally, I verified that all traces of the dead DC were gone:

# Check overall AD health
dcdiag /v

# Check replication status
repadmin /replsummary

# Verify no references to old DC
repadmin /showrepl

# Check domain controller list
netdom query /domain:bear.local dc

Interested in automating the “Cleanup” ?

Here's the complete PowerShell script I created not that this should be a frequent activity but this will complete the actions in the correct order:

# Complete Domain Controller Cleanup Script

param(
    [Parameter(Mandatory=$true)]
    [string]$FailedDCName,

    [Parameter(Mandatory=$true)]
    [string]$FailedDCIP,

    [Parameter(Mandatory=$true)]
    [string]$DomainName,

    [Parameter(Mandatory=$true)]
    [string]$HealthyDCName
)

Write-Host "Starting cleanup for failed DC: $FailedDCName" -ForegroundColor Yellow

# Step 1: Remove computer object from Domain Controllers OU
Write-Host "Removing computer object from Domain Controllers OU..."
-ForegroundColor Green
try {
    $dn = "CN=$FailedDCName,OU=Domain Controllers," + (Get-ADDomain).DistinguishedName
    Remove-ADObject -Identity $dn -Confirm:$false
    Write-Host "Computer object removed successfully" -ForegroundColor Green
} catch {
    Write-Host "Computer object not found or already removed" -ForegroundColor Yellow
}

# Step 2: DNS Cleanup
Write-Host "Cleaning up DNS records..." -ForegroundColor Green

# Clean _msdcs zone
Write-Host "Cleaning _msdcs zone records..." -ForegroundColor Cyan
Get-DnsServerResourceRecord -ZoneName "_msdcs.$DomainName" | Where-Object {
    $_.RecordData.IPv4Address -eq $FailedDCIP -or
    $_.RecordData.NameServer -eq "$FailedDCName.$DomainName." -or
    $_.RecordData.DomainName -eq "$FailedDCName.$DomainName."
} | Remove-DnsServerResourceRecord -ZoneName "_msdcs.$DomainName" -Force

# Clean main domain zone
Write-Host "Cleaning main domain zone records..." -ForegroundColor Cyan
Get-DnsServerResourceRecord -ZoneName $DomainName | Where-Object {
    $_.RecordData.IPv4Address -eq $FailedDCIP -or
    $_.RecordData.DomainName -eq "$FailedDCName.$DomainName."
} | Remove-DnsServerResourceRecord -ZoneName $DomainName -Force

# Clean reverse lookup zone (assuming standard /24 subnet)
$octets = $FailedDCIP.Split('.')
$reverseZone = "$($octets[2]).$($octets[1]).$($octets[0]).in-addr.arpa"
$lastOctet = $octets[3]

Write-Host "Cleaning reverse lookup zone: $reverseZone" -ForegroundColor Cyan
try {
    Get-DnsServerResourceRecord -ZoneName $reverseZone | Where-Object {
        $_.RecordData.DomainName -eq "$FailedDCName.$DomainName."
    } | Remove-DnsServerResourceRecord -ZoneName $reverseZone -Force
} catch {
    Write-Host "Reverse lookup zone not found or no records to clean"
-ForegroundColor Yellow
}

# Step 3: Force replication
Write-Host "Forcing Active Directory replication..." -ForegroundColor Green
Start-Process -FilePath "repadmin" -ArgumentList "/syncall /AdeP" -Wait -NoNewWindow

# Step 4: Verification
Write-Host "Running verification checks..." -ForegroundColor Green
Write-Host "Domain Controllers in domain:" -ForegroundColor Cyan
netdom query /domain:$DomainName dc

Write-Host "Replication summary:" -ForegroundColor Cyan
repadmin /replsummary

Write-Host "Cleanup completed for $FailedDCName" -ForegroundColor Green
Write-Host "Please verify no references remain and monitor replication health"
-ForegroundColor Yellow

Usage:

.\Cleanup-FailedDC.ps1 -FailedDCName "fuzzybear"
-FailedDCIP "10.85.66.266" -DomainName "bear.local" -HealthyDCName "bearclaws"

Common Issues and Troubleshooting

1. NTDSUTIL Errors

If you get "Invalid DN Syntax" or "Object not found" errors:

• The DC might already be partially cleaned
• Try the GUI method instead (ADUC and Sites & Services)
• Verify you're connected to the right healthy DC

2. DNS Record Persistence

Some DNS records might not delete automatically:

• Check for scavenging settings
• Manually verify each zone
• Use dnscmd for stubborn records

3. Replication Errors

After cleanup, you might see temporary replication errors:

• This is normal as AD adjusts to the topology change
• Monitor with repadmin /replsummary
• Errors should clear within hours

Building the Replacement

After the cleanup was complete, I built a new domain controller to replace the failed one, once it has been built, it’s a member server by joining it to the domain, we then need to firstly, add the required role:

# Install AD DS role first
Install-WindowsFeature -Name AD-Domain-Services -IncludeManagementTools

Then we need the command to make the meber server a domain controller:

# Promote to domain controller
Install-ADDSDomainController `
  -DomainName "bear.local" `
  -InstallDns `
  -Credential (Get-Credential) `
  -SiteName "New York" `
  -NoGlobalCatalog:$false `
  -DatabasePath "C:\Windows\NTDS" `
  -LogPath "D:\NTDS" `
  -SysvolPath "E:\SYSVOL" `
  -SafeModeAdministratorPassword (Read-Host -AsSecureString "Enter DSRM Password") `
  -Force

Specific partner required for replication?
If all your domain controllers are healthy then there is no real need for this command parameter as it really doesn’t matter what you replicate from, the domain controller should have the same consistent information.
However, consider for a moment, not all the domain controllers are healthy and you have some "degraded" domain controllers.
If you are in the situation is like the one mentioned above I would highly recommend you need to specify a known working domain controller to replicate from, if you wish to do that, you need to specify the following parameter when running the command to promote the domain controller:

-ReplicationSourceDC "bearclaws.bear.local" `


Lessons Learned

Let’s review the lessons learn from the exercise because learning is just as important as running commands.

1. Cleanup is Critical

Leaving dead domain controller references in AD causes ongoing problems. Clean them up immediately.

2. DNS is Often Forgotten

NTDSUTIL doesn't clean DNS records. This is a manual process that's easy to overlook but critical for proper operation.

3. Automation Saves Time

Creating a reusable script makes future cleanups much faster and less error-prone.

4. Verification is Essential

Always verify your cleanup worked. Run health checks and monitor replication to ensure everything is working properly.

Conclusion

Forcibly removing a dead domain controller from Active Directory requires careful attention to detail. The process involves:

1. NTDSUTIL metadata cleanup - Removes core AD references
2. Computer object removal - Cleans up the Domain Controllers OU
3. DNS record cleanup - Removes all DNS references (most time-consuming)
4. Replication - Ensures changes propagate
5. Verification - Confirms the cleanup worked

While this process seems complex, it's essential for maintaining a healthy Active Directory environment in the event of an unexpected disaster.

The silver lining of my chkdsk disaster was tuning and refining the cleanup process. Now I have a solid understanding of how to properly remove failed domain controllers and the automation to do it effectively.
