In today's complex IT environments, identifying the true cause of system performance issues can feel like finding a needle in a haystack. High CPU utilization or a growing process queue might be symptoms, but what's causing them? In this article, we'll explore a powerful PowerShell script that goes beyond basic monitoring to provide deep insights into what's really slowing down your systems.
The Problem with Traditional Monitoring
Most system monitoring tools tell you that a problem exists, but not why it exists. They might alert you to high CPU usage or memory consumption, but leave you to manually investigate the root cause. This often leads to:
- Wasted time digging through multiple tools and logs
- Misdiagnosed problems and ineffective solutions
- Recurring issues that never get properly resolved
- Frustrated users and IT professionals
Deep Process Analysis
Our advanced PowerShell monitoring script takes a different approach. When it detects performance issues, it automatically performs a comprehensive analysis to identify exactly what's happening inside your system:
Process Introspection
The script doesn't just tell you which processes are using resources—it looks inside them to find:
- Specific command-line arguments that might indicate problematic configurations
- Thread-level analysis to identify CPU-hungry threads within processes
- Loaded modules/DLLs that might be causing memory bloat
- Parent-child process relationships that reveal the true source of issues
Resource Contention Detection
Beyond single process metrics, the script identifies system-wide patterns:
- CPU core imbalance that reveals single-threaded bottlenecks
- I/O and network operations by process to find disk or network constraints
- Memory pressure indicators across the system
- Page file usage patterns that might indicate memory leaks
Root Cause Analysis & Recommendations
Most importantly, the script doesn't just dump data—it interprets it:
- Automatically classifies the type of bottleneck (CPU, memory, disk, network)
- Provides specific, actionable recommendations based on observed patterns
- Flags concerning behaviors like single process dominance
- Creates a historical record for trend analysis
Real-World Scenarios It Can Detect
This script can identify complex issues that typically take hours of manual investigation:
- Single Thread Bottlenecks: "SQL Server is showing high CPU because a specific query thread is stuck in an infinite loop."
- Memory Leaks: "Chrome has excessive memory usage due to extension memory leaks across 217 tabs."
- I/O Contention: "A backup process is causing disk queue bottlenecks by using synchronous I/O operations."
- Accumulated Issues: "System has been running for 87 days with gradual memory fragmentation."
How does it work?
The script runs as a background monitor, continuously checking for signs of trouble. When CPU utilization or process queue length exceeds configurable thresholds, it springs into action:
- It captures a comprehensive snapshot of system activity
- It performs deep analysis of the most resource-intensive processes
- It correlates findings across subsystems (CPU, memory, disk, network)
- It generates detailed logs with actionable insights
- It can optionally send email alerts with specific findings

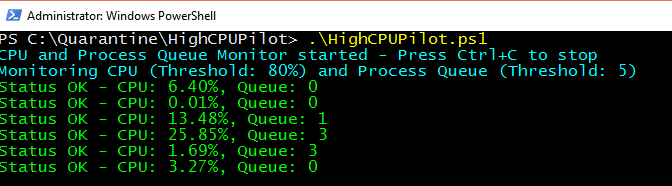

These are some images of the script running, this shows normal operation with the thresholds not met:

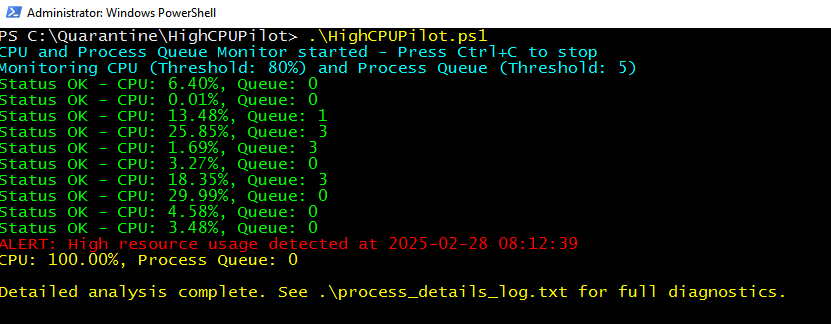

Then when the trigger is hit, in this case CPU you do not get an alert but a detailed analysis file for each process as you can see below:
Then the script goes back to looking for more issues that hit the threshold as you can see below:
Then when you look at the detailed report you see more about
why and potential causes:
================================================================================
SYSTEM RESOURCE ALERT - 2025-02-28 08:12:39
CPU Utilization: 100.00%
Process Queue Length: 0
================================================================================
TOP CPU CONSUMING PROCESSES:
Name Id CPU CPU% WorkingSetMB PrivateMemoryMB HandleCount ThreadCount StartTime RunTime
---- -- --- ---- ------------ --------------- ----------- ----------- --------- -------
MsMpEng 2812 118442.546875 59221.28 295.62 319.61 743 27 08/02/2025 00:05:57 20.08:06:42.7263937
MsSense 2496 16947.15625 8473.58 254.11 228.21 933 43 08/02/2025 00:05:56 20.08:06:43.0029694
lsass 724 13129.828125 6564.91 38.58 22.47 3194 14 08/02/2025 00:05:51 20.08:06:48.4895401
System 4 8985.96875 4492.98 0.14 0.12 1970 153 08/02/2025 00:05:47 20.08:06:52.8477909
msedge 3600 7839.28125 3919.64 389.12 246.57 3664 65 14/02/2025 08:27:34 13.23:45:05.6589497
svchost 428 5684.828125 2842.41 115.97 87.02 1015 48 08/02/2025 00:05:52 20.08:06:47.9995816
firefox 10648 5000.984375 2500.49 454.71 390.09 1363 62 08/02/2025 17:06:05 19.15:06:34.8125363
svchost 468 4451.375 2225.69 40.93 27.68 977 18 08/02/2025 00:05:52 20.08:06:47.8771916
ir_agent 4644 4269.078125 2134.54 146.31 126.36 414 16 08/02/2025 23:11:12 19.09:01:27.4161665
ir_agent 9704 3913.484375 1956.74 65.39 47.88 572 29 08/02/2025 23:09:59 19.09:02:40.0483793
This will also break down on common bottlenecks per process for easy identification:
================================================================================
TOP MEMORY CONSUMING PROCESSES:
Name Id CPU% WorkingSetMB PrivateMemoryMB PeakWorkingSetMB
---- -- ---- ------------ --------------- ----------------
msedge 1080 1279.86 627.77 680.49 1169.02
msedge 7820 200.07 570.09 545.31 676.15
powershell 10480 15.75 469.26 423.95 506.92
firefox 10648 2361.35 422.02 357.28 572.7
msedge 3600 3710.03 394.46 249.4 509.82
msedge 5148 216.26 360.31 410.5 865.74
sqlservr 4348 0 343.43 454.11 344.76
MsMpEng 2812 0 321.86 342.79 1074.1
chrome 2548 953.71 281.57 168.06 333.63
msedge 15232 807.97 275 103.07 654.56
TOP DISK I/O PROCESSES:
Name IDProcess IODataBytesPersec IOOtherBytesPersec
---- --------- ----------------- ------------------
msedge#11 3600 5491858 7736
msedge#9 7820 307872 0
msedge#8 17656 180327 0
msedge#23 15888 124545 0
powershell#4 8024 38739 0
MicrosoftDependencyAgent 6396 8495 0
svchost#23 468 5634 0
csrss 5492 1926 0
svchost#13 1300 262 0
MxNotify 8508 0 0
DISK I/O INFORMATION:
Name PercentDiskTime AvgDiskQueueLength DiskReadBytesPersec DiskWriteBytesPersec CurrentDiskQueueLength Disk
Read
sPer
sec
---- --------------- ------------------ ------------------- -------------------- ---------------------- ----
_Total 0 0 0 32741 0 0
C: 0 0 0 32741 0 0
D: 0 0 0 0 0 0
HarddiskVolume1 0 0 0 0 0 0
HarddiskVolume4 0 0 0 0 0 0
Then you will get a summary with recommendations if you wish to review those:
CRITICAL SERVICES STATUS:
Service: Print Spooler, Status: Stopped
Service: Windows Update, Status: Stopped
Service: World Wide Web Publishing Service, Status: Running
SYSTEM UPTIME:
System has been running for: 20 days, 8 hours, 7 minutes
================================================================================
ROOT CAUSE ANALYSIS AND RECOMMENDATIONS
================================================================================
CPU BOTTLENECK DETECTED:
* Single process dominating CPU: MsMpEng (PID: 2812) using 59.27% of total CPU
Recommendation: Investigate this process. Consider limiting its priority or investigating for bugs/optimization.
Where is the script ?
If you would like this script please let me know by using the contact form in the site navigation.
